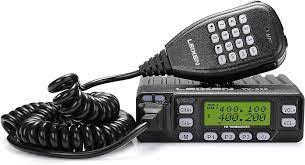

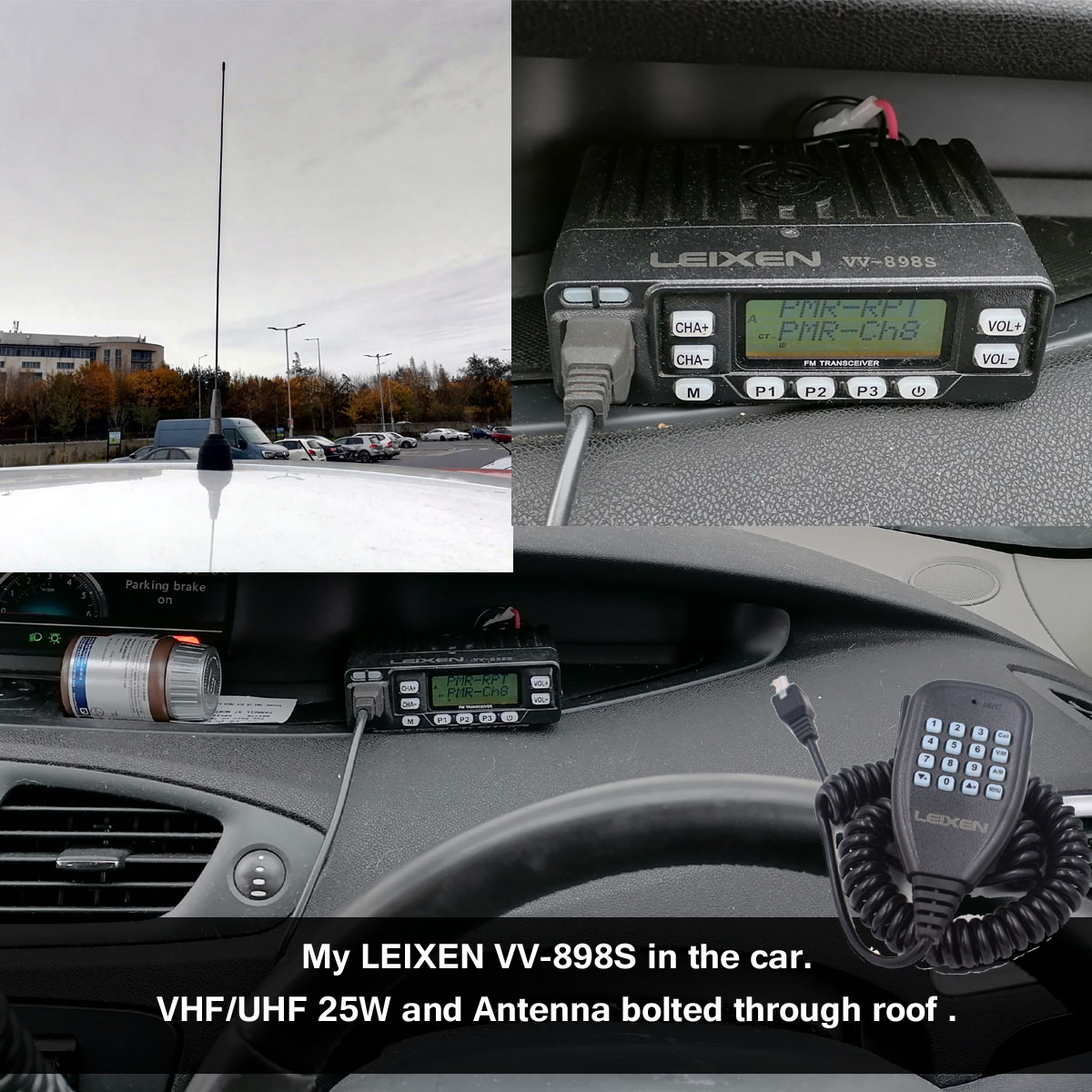

After watching several YouTube videos by a creator called "Fred in the Shed" where he was using a tiny radio, a Leixen VV 898-S I decided that I would purchase one for mobile operation from the car. I did have an Icom 706 in the car and a Yaesu FT7800 which were both starting to show signs of possible damage from Icy cold winters and hot summers, so a lot of hot and cold cycles so I figured get these into the house and put something cheap and cheerful in the car.
The firmware in these radios cannot be updated. The microcontroller is an OTP type. (One Time Programmable) Once 'flash' is programmed at the factory, it cannot be changed, however, they are good little radios feature packed and 25 Watts maximum power output.
LEIXEN Programming Software: DOWNLOAD
Factory Specifications:
| Features * PTT ID (Voice broadcast PTT ID） * All calls, group calls and selective calls * Monitor, RX Inhibit, RXTX Inhibit and Emergency Alarm * FM Radio (87.5MHz-108MHz） * Scan/Scan add * Channel name edit available * 199 memory channels * High/Low power (10W/4W) * APO (Auto Power Off) * TOT (Time-out timer) * Font Set (Big/Small) * VOX (Level adjustable) * Busy channel lockout * Keyboard lock (Auto/Manual) * Multi scan mode (TO/CO) * Channel steps (2.5K/5K/6.25K/10K/12.5K/25K) * Wide/Narrow band selection (25KHz/12.5KHz) * TX Stop * Talk Around * Beat frequency * Reverse frequency function * 1750Hz burst tone * Four key programmable * Lease Function (can program lease time termination) * Input frequency by using Keypad * Wireless changing frequency * Time Display * PC software disable frequency input * Passwords for menu functions Set * PTT Times per Minutes Set * All / Function reset * 13.8V DC Power Supply * Size: 120*85*40mmGeneral * Frequency Range: 400-470MHz, 136-174MHz * Channel Capacity: 199 * Output Power: 5W/10W/25W * Operation Mode: Simplex * Dimension: 120x90x40mm (4.7”x3.5”x1.6”). * Weight: 315g * Modulation Limitation: ≤±5KHz * Spurious Radiation: 60dB * TX Current: 1A/1.8A * Frequency Stability: ±2.5PPm * Rx Sensitivity: ＜0.18μV * Modulation Type: F3E * Audio Power: ≥ 400mW * Standby Current: 78mA (Power Saving mode is 30mA）Package Contents 1x Mobile transceiver 1x DC Power Cable 1x Bracket 1x Bracket Screw 1x User Manual. |
